產品特點：
兩個精密進口深溝球軸承支撐，轉動平穩；
平衡式機械密封設計結構，降低壓力變化負荷對密封
面的影響，延長使用壽命；
標準產品使用碳化硅與耐磨石墨的摩擦密封副，壽命
長久,可根據工作環境需要更改為碳化硅/碳化硅或硬
質合金/硬質合金多種摩擦副結構；
標準產品使用鋁合金殼體、不銹鋼轉軸，并可以根據
需要改為SUS316L不銹鋼，使用于食品、醫療行業；
可拆卸密封包結構，便于現場維修；
技術參數：
最高轉速：3000 r/min
工作溫度：-30～+120℃
最大壓力：1.1Mpa
適用介質：壓縮空氣、水
重要提示：
1.安裝后必須確保一個泄漏孔豎直向下；
2.禁止豎直安裝使用，密封面的泄漏會造成軸承銹蝕；
3.嚴禁輸送易燃、易爆、有毒或強腐蝕介質；
4.雙向固定內管螺紋均為右旋，即使外管"K"為法蘭
或左旋螺紋聯接；
5.使用其它介質時,需咨詢封技術部；

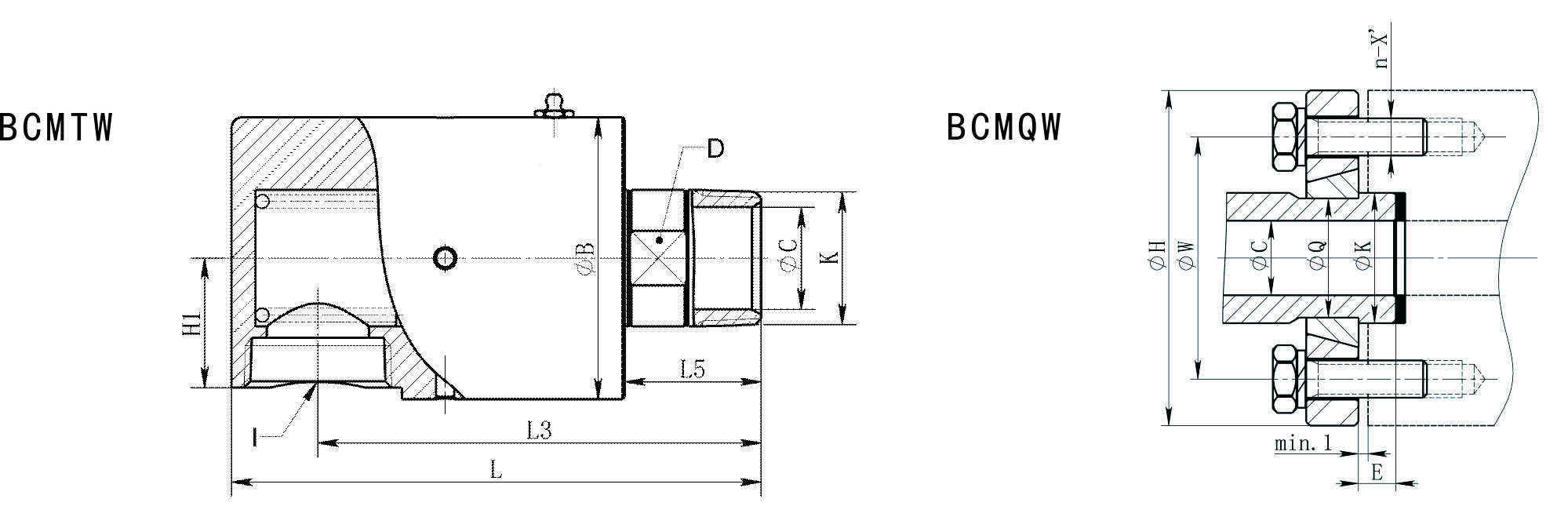

BCM-單向式旋轉接頭
| DN | 訂貨號 Order-No. | K | I | L | L3 | L5 | H1 | B | C | D |
| 8A | BCMTW008A.01-S/C | R1/4"-RH | Rc1/4" | 78 | 68 | 22 | 18 | 39 | 5 | 14 |
| 10A | BCMTW010A.01-S/C | R3/8"-RH | Rc3/8" | 123 | 109 | 29 | 26 | 57 | 8 | 21 |
| BCMQW010A.00-S/C | 20 | 133 | 119 | 39 | \ | |||||
| 15A | BCMTW015A.01-S/C | R1/2"-RH | Rc1/2" | 123 | 108 | 29 | 26 | 57 | 12 | 21 |
| BCMQW015A.00-S/C | 25 | 133 | 118 | 39 | \ | |||||
| 20A | BCMTW020A.01-S/C | R3/4"-RH | Rc3/4" | 134 | 116 | 32 | 28 | 64 | 17 | 24 |
| BCMQW020A.00-S/C | 30 | 149 | 131 | 47 | \ | |||||
| 25A | BCMTW025A.01-S/C | R1"-RH | Rc1" | 146 | 123 | 33 | 33 | 74 | 20 | 30 |
| BCMQW025A.00-S/C | 35 | 161 | 138 | 48 | \ | |||||
| 32A | BCMTW032A.01-S/C | R1-1/4"-RH | Rc1-1/4" | 173 | 145 | 42 | 42 | 93 | 30 | 38 |
| BCMQW032A.00-S/C | 45 | 188 | 160 | 57 | \ | |||||
| 40A | BCMTW040A.01-S/C | R1-1/2"-RH | Rc1-1/2" | 182 | 152 | 40 | 44 | 98 | 35 | 44 |
| BCMQW040A.00-S/C | 50 | 197 | 167 | 55 | \ | |||||
| 50A | BCMTW050A.01-S/C | R2"-RH | Rc2" | 233 | 195 | 60 | 57 | 124 | 45 | 55 |
| BCMQW050A.00-S/C | 60 | 236 | 198 | 63 | \ | |||||
| 65A | BCMTW065A.01-S/C | R2-1/2"-RH | Rc2-1/2" | 334 | 290 | 70 | 69 | 145 | 60 | 75 |
| BCMQW065A.00-S/C | 75 | 339 | 295 | 75 | \ | |||||
| 80A | BCMTW080A.01-S/C | R3"-RH | Rc3" | 362 | 311 | 82 | 78 | 158 | 75 | 85 |
| BCMQW080A.00-S/C | 90 | 362 | 311 | 82 | \ | |||||
| 90A | BCMQW090A.00-S/C | 100 | Rc3" | 369 | 318 | 84 | 78 | 175 | 82 | \ |
| 100A | BCMTW100A.01-S/C | R4"-RH | Rc4" | 445 | 375 | 85 | 96 | 208 | 95 | 112 |
| BCMQW100A.00-S/C | 115 | 445 | 375 | 85 | \ |

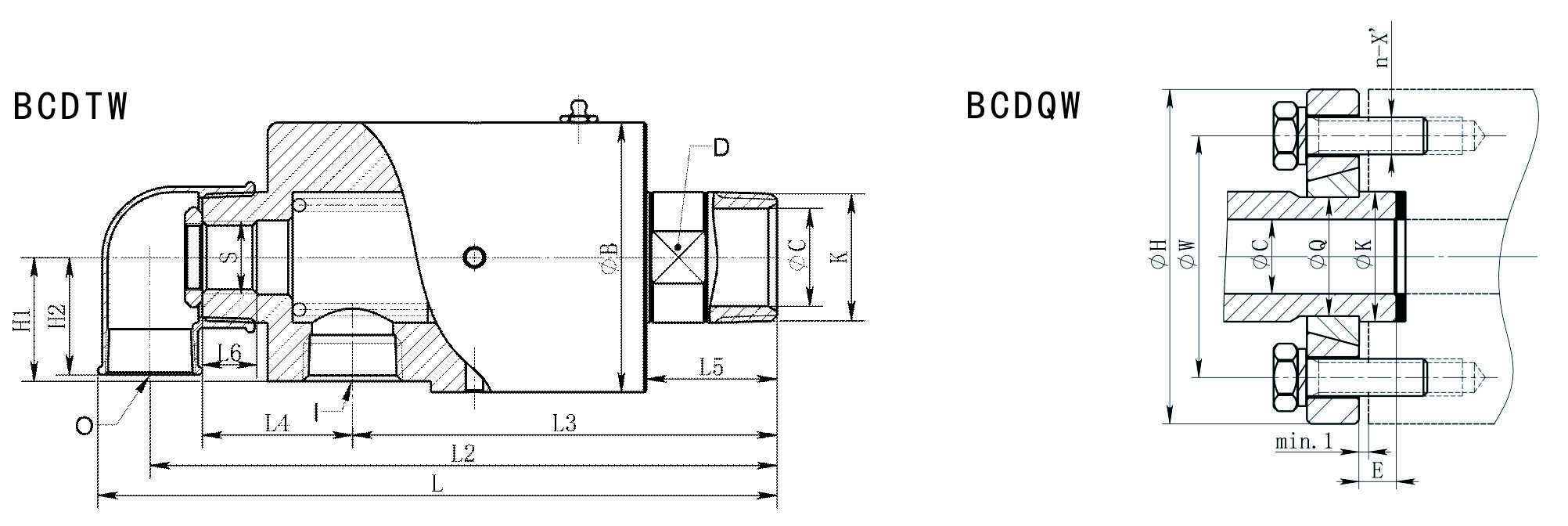

BCD-雙向固定式內管旋轉接頭
| DN | 訂貨號 Order-No. | K | I | O | S | L | L2 | L3 | L4 | L5 | L6 | H1 | H2 | B | C | D |
| 15A | BCDTW015A-006A.01-S/C | R1/2"-RH | Rc1/2" | Rc1/2" | G1/8"-RH | 169 | 154 | 108 | 35 | 29 | 15 | 26 | 27 | φ57 | φ12 | 21 |
| BCDQW015A-006A.00-S/C | 25 | 179 | 164 | 118 | 39 | \ | ||||||||||
| 20A | BCDTW020A-008A.01-S/C | R3/4"-RH | Rc1/2" | Rc1/2" | G1/4"-RH | 182 | 167 | 116 | 38 | 32 | 15 | 28 | 30 | φ64 | φ17 | 24 |
| BCDQW020A-008A.00-S/C | 30 | 197 | 182 | 131 | 47 | \ | ||||||||||
| 25A | BCDTW025A-010A.01-S/C | R1"-RH | Rc3/4" | Rc3/4" | G3/8"-RH | 201 | 184 | 123 | 46 | 33 | 18 | 33 | 35 | φ74 | φ20 | 30 |
| BCDQW025A-010A.00-S/C | 35 | 216 | 199 | 138 | 48 | \ | ||||||||||
| 32A | BCDTW032A-015A.01-S/C | R1-1/4"-RH | Rc1" | Rc1" | G1/2"-RH | 239 | 219 | 145 | 53 | 42 | 22 | 42 | 42 | φ93 | φ30 | 38 |
| BCDQW032A-015A.00-S/C | 45 | 254 | 234 | 160 | 57 | \ | ||||||||||
| 40A | BCDTW040A-020A.01-S/C | R1-1/2"-RH | Rc1" | Rc1" | G3/4"-RH | 248 | 229 | 152 | 55 | 40 | 25 | 44 | 45 | φ98 | φ35 | 44 |
| BCDQW040A-020A.00-S/C | 50 | 263 | 244 | 167 | 55 | \ | ||||||||||
| 50A | BCDTW050A-025A.01-S/C | R2"-RH | Rc1-1/4" | Rc1-1/4" | G1"-RH | 312 | 288 | 195 | 69 | 60 | 25 | 57 | 54 | φ124 | φ45 | 55 |
| BCDQW050A-025A.00-S/C | 60 | 315 | 291 | 198 | 63 | \ | ||||||||||
| 65A | BCDTW065A-032A.01-S/C | R2-1/2" | Rc1-1/2" | Rc1-1/2" | G1-1/4"-RH | 366 | 337 | 225 | 80 | 70 | 30 | 75 | 62 | 145 | 60 | 75 |
| BCDQW065A-032A.00-S/C | 75 | 371 | 342 | 230 | 75 | \ | ||||||||||
| 80A | BCDTW080A-040A.01-S/C | R3" | Rc2" | Rc2" | G1-1/2"-RH | 400 | 366 | 242 | 90 | 82 | 32 | 90 | 72 | 158 | 75 | 85 |
| BCDQW080A-040A.00-S/C | 90 | 400 | 366 | 242 | 82 | \ |

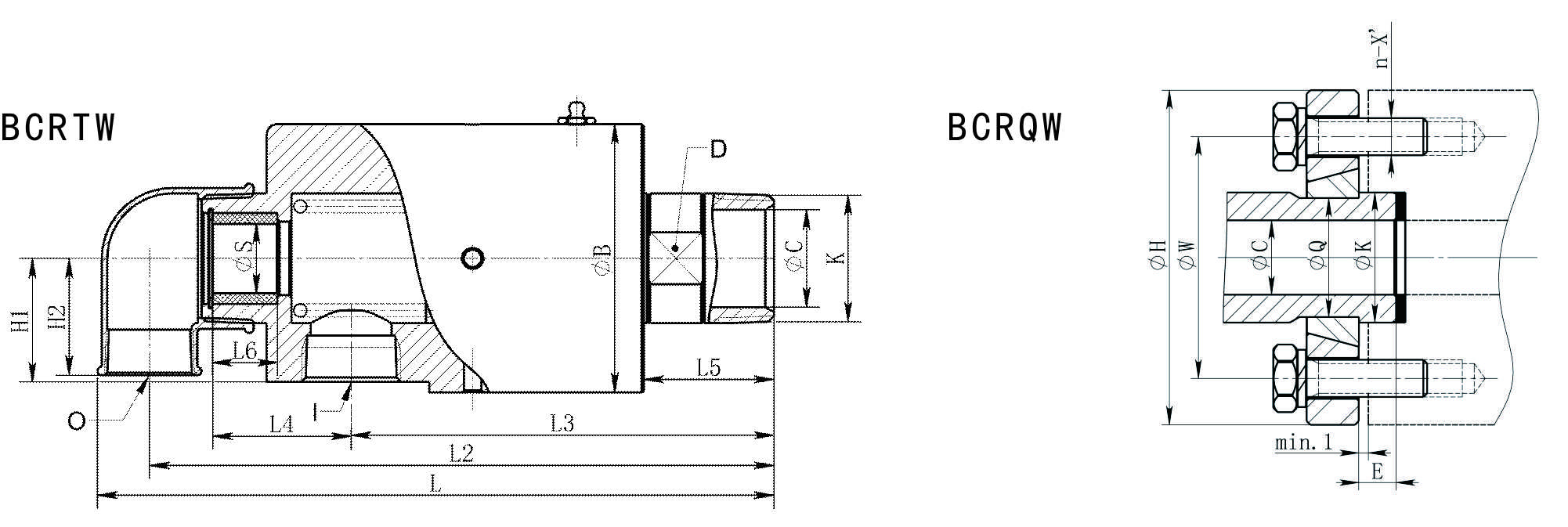

BCR-雙向旋轉式內管旋轉接頭
| DN | 訂貨號 Order-No. | K | I | O | S(h9/E8) | L | L2 | L3 | L4 | L5 | L6 | H1 | H2 | B | C | D |
| 15A | BCRTW015A-006A.01-S/C | R1/2"-RH | Rc1/2" | Rc1/2" | 10 | 169 | 154 | 108 | 32 | 30 | 18 | 26 | 27 | 57 | 12 | 21 |
| BCRQW015A-006A.00-S/C | 25 | 179 | 164 | 118 | 40 | \ | ||||||||||
| 20A | BCRTW020A-008A.01-S/C | R3/4"-RH | Rc1/2" | Rc1/2" | 12 | 182 | 167 | 116 | 34 | 32 | 20 | 28 | 30 | 64 | 17 | 24 |
| BCRQW020A-008A.00-S/C | 30 | 197 | 182 | 131 | 47 | \ | ||||||||||
| 25A | BCRTW025A-010A.01-S/C | R1"-RH | Rc3/4" | Rc3/4" | 16 | 200 | 184 | 123 | 41 | 33 | 20 | 33 | 35 | 74 | 20 | 30 |
| BCRQW025A-010A.00-S/C | 35 | 216 | 199 | 138 | 48 | \ | ||||||||||
| 32A | BCRTW032A-015A.01-S/C | R1-1/4"-RH | Rc1" | Rc1" | 20 | 239 | 219 | 145 | 48 | 42 | 25 | 42 | 42 | 93 | 30 | 38 |
| BCRQW032A-015A.00-S/C | 45 | 254 | 234 | 160 | 57 | \ | ||||||||||
| 40A | BCRTW040A-020A.01-S/C | R1-1/2"-RH | Rc1" | Rc1" | 25 | 248 | 229 | 152 | 50 | 40 | 25 | 44 | 45 | 98 | 35 | 44 |
| BCRQW040A-020A.00-S/C | 50 | 263 | 244 | 167 | 55 | \ | ||||||||||
| 50A | BCRTW050A-025A.01-S/C | R2"-RH | Rc1-1/4" | Rc1-1/4" | 32 | 312 | 288 | 195 | 64 | 60 | 30 | 57 | 54 | 124 | 45 | 55 |
| BCRQW050A-025A.00-S/C | 60 | 315 | 291 | 198 | 63 | \ | ||||||||||
| 65A | BCRTW065A-032A.01-S/C | R2-1/2"-RH | Rc1-1/2" | Rc1-1/2" | 40 | 366 | 337 | 225 | 74 | 70 | 32 | 75 | 62 | 145 | 60 | 75 |
| BCRQW065A-032A.00-S/C | 75 | 371 | 342 | 230 | 75 | \ | ||||||||||
| 80A | BCRTW080A-040A.01-S/C | R3"-RH | Rc2" | Rc2" | 46 | 400 | 366 | 242 | 84 | 82 | 40 | 90 | 72 | 158 | 75 | 85 |
| BCRQW080A-040A.00-S/C | 90 | 400 | 366 | 242 | 82 | \ |

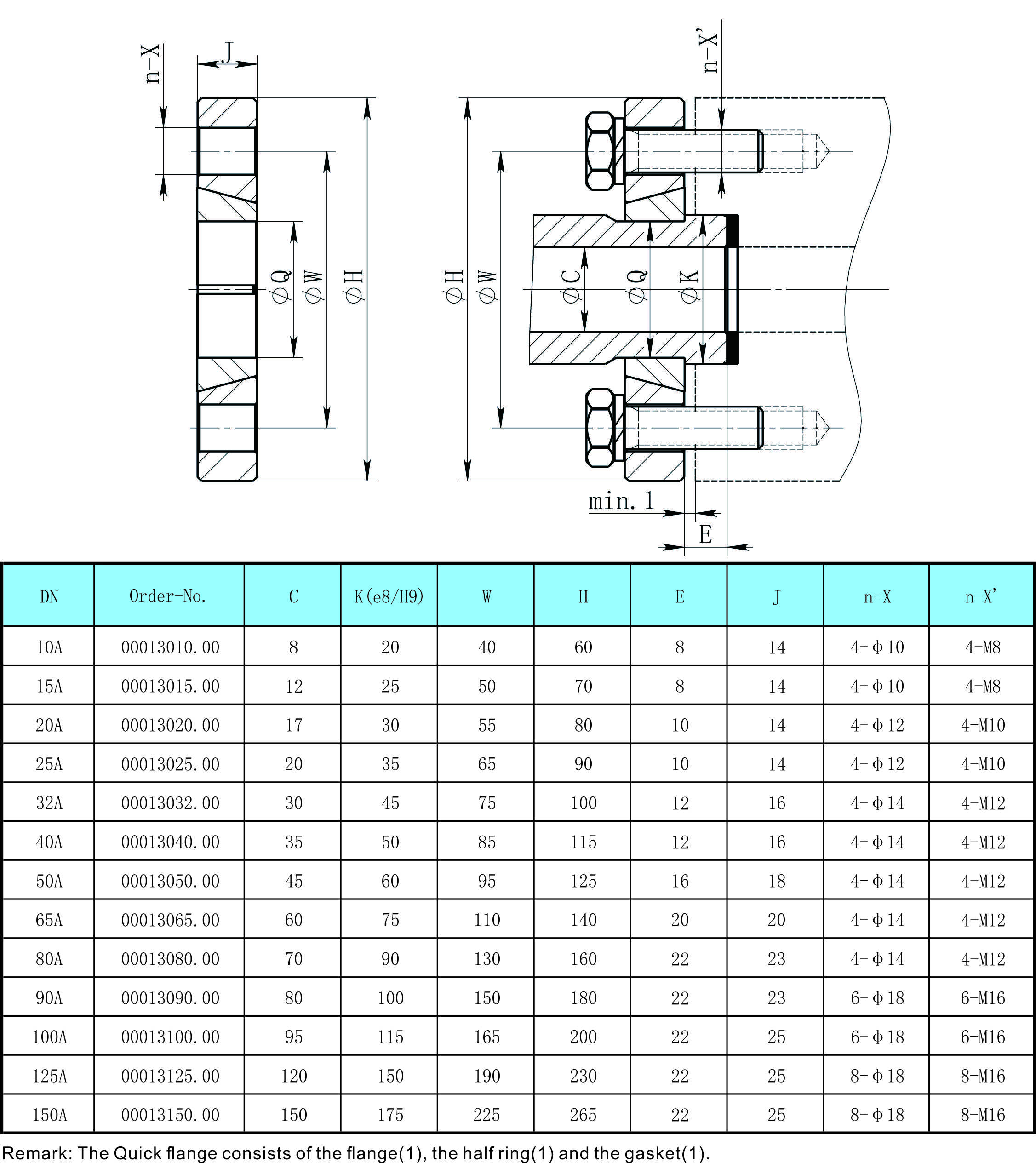

快換法蘭尺寸表

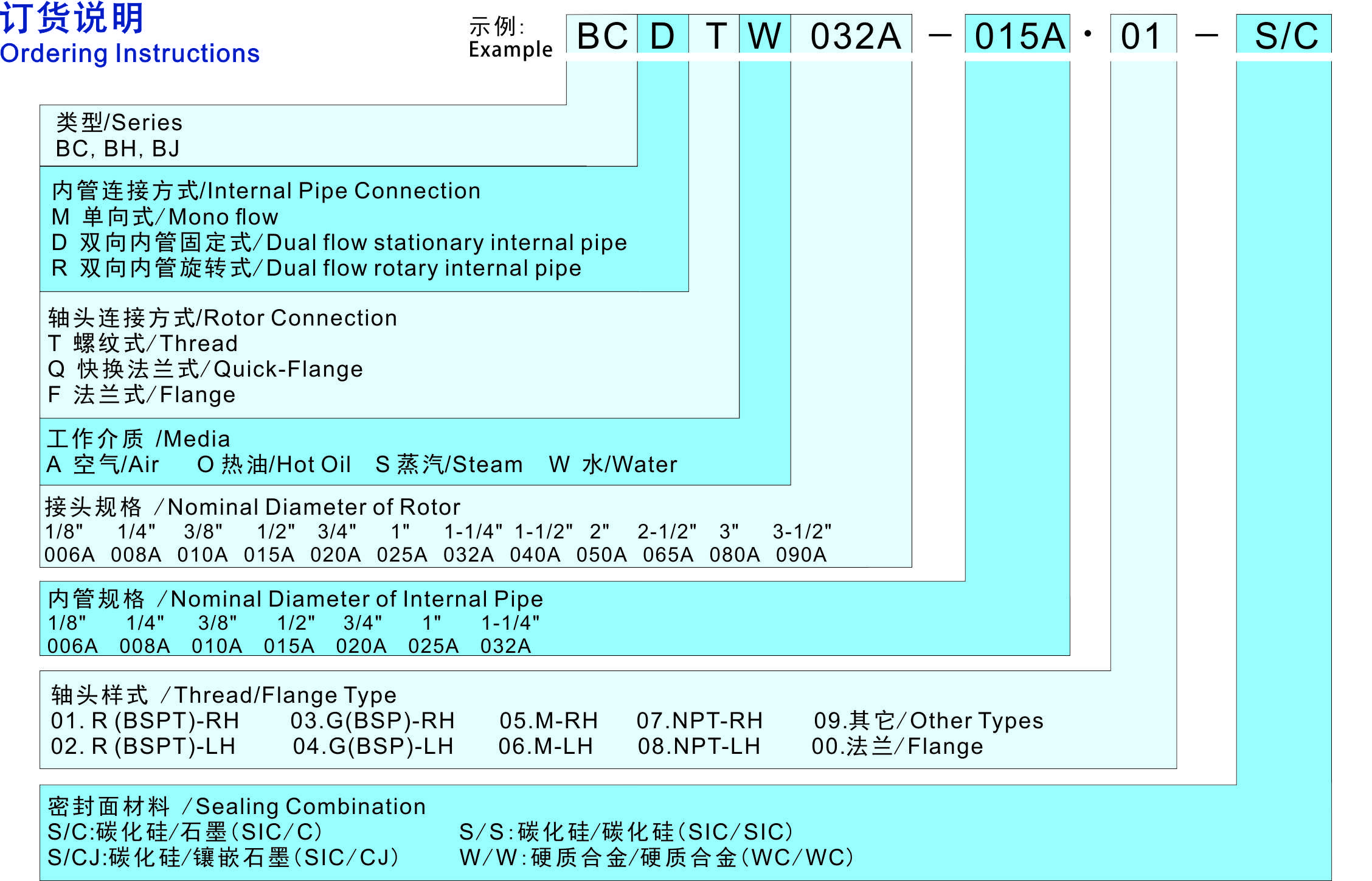

旋轉接頭訂貨說明
