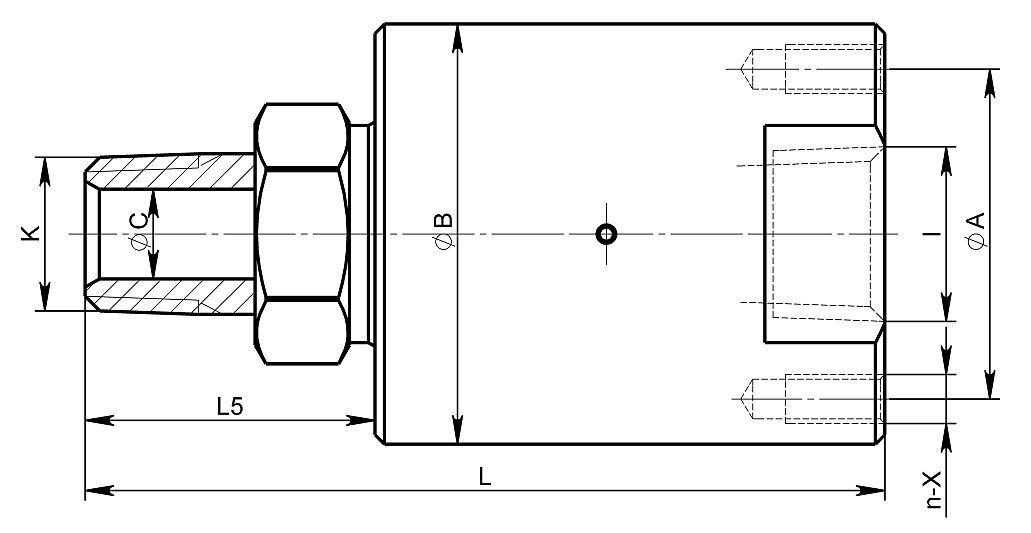

MLA型旋轉(zhuǎn)接頭(低速壓縮空氣)
| TYPE | 訂貨號 Order-No. | I | K | A | B | C | L | L5 | n-X |
| MLA01 | MLA01006 | Rc1/8" | R1/8" | 28.5 | 38 | 4 | 72 | 21 | 2-M5 |
| MLA01008 | Rc1/4" | R1/4" | 28.5 | 38 | 6.5 | 75 | 24 | 2-M5 | |
| MLA01010 | Rc3/8" | R3/8" | 34.93 | 44.5 | 9.5 | 84.7 | 30.7 | 2-M5 | |
| MLA01015 | Rc1/2" | R1/2" | 34.93 | 44.5 | 12.7 | 84.7 | 30.7 | 2-M5 |

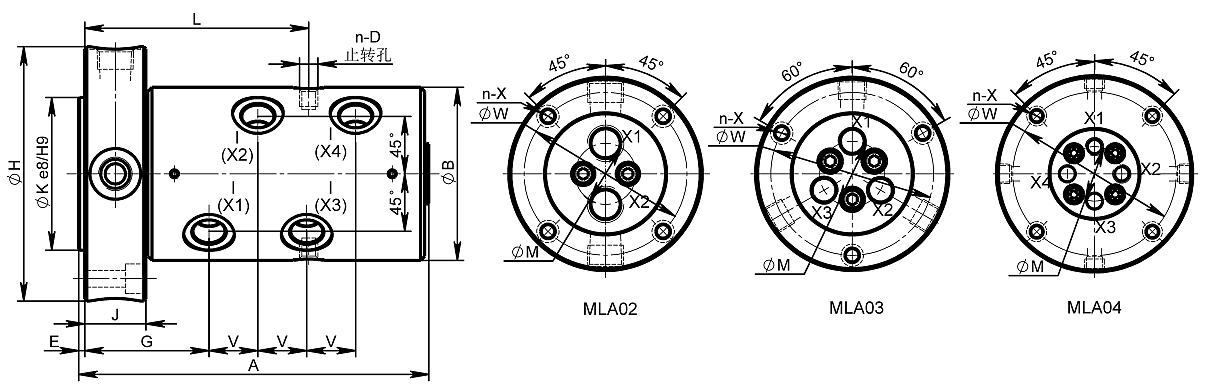

| TYPE | 訂貨號 Order-No. | I | K | A | B | M | n-D | L | E | G | V | J | W | H | n-X |
| MLA02 | MLA02005 | 2xM5 | 30 | 62.5 | 35 | 15 | 2-M5 | 45.5 | 3 | 29 | 11 | 14 | 45 | 58 | 4-φ5.5 |
| MLA02006 | 2xRc1/8" | 45 | 90 | 48 | 20 | 2-M6 | 75 | 3 | 43 | 18 | 20 | 60 | 75 | 4-φ6.6 | |
| MLA02008 | 2xRc1/4" | 50 | 106 | 58 | 25 | 2-M8 | 90 | 3 | 51 | 22 | 24 | 70 | 85 | 4-φ6.6 | |
| MLA02010 | 2xRc3/8" | 60 | 120 | 68 | 30 | 2-M8 | 95 | 3 | 59 | 24 | 30 | 80 | 95 | 4-φ6.6 | |
| MLA02015 | 2xRc1/2" | 70 | 145 | 85 | 35 | 2-M10 | 115 | 3 | 70 | 30 | 35 | 100 | 118 | 4-φ9 | |
| MLA03 | MLA03005 | 3xM5 | 45 | 89.5 | 48 | 25 | 2-M6 | 74.5 | 3 | 34.5 | 14 | 14 | 60 | 75 | 3-φ5.5 |
| MLA03006 | 3xRc1/8" | 50 | 112 | 58 | 30 | 2-M6 | 80 | 3 | 45 | 18 | 20 | 70 | 85 | 3-φ6.6 | |
| MLA03008 | 3xRc1/4" | 60 | 132 | 68 | 32 | 2-M8 | 100 | 3 | 52 | 22 | 24 | 80 | 95 | 3-φ6.6 | |
| MLA03010 | 3xRc3/8" | 70 | 150 | 78 | 35 | 2-M8 | 120 | 3 | 62 | 24 | 30 | 95 | 115 | 3-φ9 | |
| MLA03015 | 3xRc1/2" | 80 | 176 | 85 | 45 | 2-M10 | 145 | 3 | 70 | 30 | 35 | 100 | 118 | 3-φ9 | |
| MLA04 | MLA04005 | 4xM5 | 40 | 108 | 58 | 25 | 2-M5 | 70 | 3 | 37 | 14 | 14 | 70 | 88 | 4-φ5.5 |
| MLA04006 | 4xRc1/8" | 50 | 134 | 78 | 30 | 2-M6 | 100 | 3 | 49 | 18 | 20 | 90 | 108 | 4-φ6.6 | |
| MLA04008 | 4xRc1/4" | 60 | 158 | 85 | 40 | 2-M8 | 100 | 3 | 54 | 22 | 24 | 100 | 118 | 4-φ6.6 | |
| MLA04010 | 4xRc3/8" | 75 | 172 | 85 | 45 | 2-M8 | 110 | 3 | 61 | 24 | 30 | 105 | 125 | 4-φ9 | |
| MLA04015 | 4xRc1/2" | 90 | 205 | 98 | 55 | 2-M10 | 140 | 3 | 70 | 30 | 35 | 115 | 138 | 4-φ9 |
